Overall Dimensions(lengthXwidthXheight)(mm)

8380* 2350 * 2720,2930

Wheelbase(mm)

3190+1100

Tread Front/Rear(mm)

1774/1774

Front/Rear suspension(mm)

1290/2790

Tire style

11R18

Tire quantity

6

Seating capacity(include driver)

20-30

Approach/Departure Angle(^o)

35/23

G.V.W.(kg)

8000

C.V.W. (kg)

6750

Max. Speed (km/h)

85

Grade ability (%)

55

Min. turning circle diameter (m)

16

Min. Ground clearance(mm)

286

Fuel Tank Capacity (L)

2x135

Emissioard

Euro II

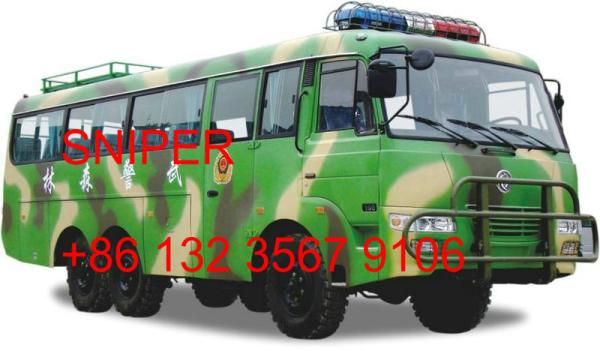

Vehicle Model

EQ6840PT(general/with A/C)

Engine model

CUMMINS-6BT5.9

fuel

diesel

Arrangement of Engine

six cylinder in line

Displacement (L)

5.88

Bore X stroke (mm)

102X120

Compression Ratio

17.5:1

Advertised Output/Advertised Output speed (kw/r/min)

114/2800

Max. Torque/Max. Torque speed (N.m/r/min))

490/1600
